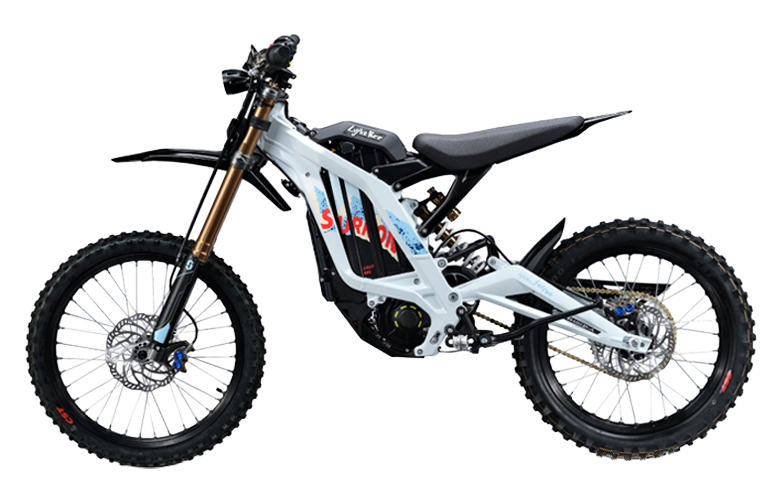

Light BEE X

R92,750

Superb functionality coupled with an exhilarating aesthetic

The light bee blends the robust torque of a dirt bike with the nimbleness and low weight of a downhill bicycle. Beneath its striking exterior lies a spirited and fervent core.

SKU: 567805 Category: Tags: , , Product ID: 508

Description

Superb Functionality Coupled with an Exhilarating Aesthetic

The Light Bee blends the robust torque of a dirt bike with the nimbleness and low weight of a downhill bicycle. Beneath its striking exterior lies a spirited and fervent core.

Self-Developed Intersect TR Rear Suspension System

After numerous trials on cross-country trails and urban road tests, we have developed an exceptional multi-link rear suspension system for the Light Bee. This design seamlessly integrates with the overall vehicle structure, and the shock absorption performance has been fine-tuned to match the specific characteristics of electric bikes, ensuring consistent optimal tire grip. The system provides 210mm of rear-wheel travel for enhanced off-road performance.

Outstanding Sporting Capabilities

In Sports mode, the robust power output of up to 8kW and the instant surge of on-wheel torque at 266N.m enable you to effortlessly execute maneuvers like jumping and performing wheelies. Furthermore, the 19-inch front wheel and 18-inch rear off-road wheel set excel in their ability to navigate rough terrain without getting stuck. All of these factors contribute to an enhanced sporting performance.

Ideal Power Pairing

60V 40Ah Lithium-ion removable battery pack with 21700 Panasonic cells delivers more than 8kW of peak power. A forged lightweight aluminum alloy frame combined with high-spec components results in a total weight of 57kg (with battery). 230mm hydraulic disc brakes provide superior stopping power, while the LCD digital dash includes a USB charger point. Designed for both youth and adults, the Light Bee boasts a climbing ability of over 45°, offering hours of near-silent fun with a range of up to 75km per charge at 40km/h, depending on terrain and mode. Top speed reaches 80km/h, and fast charging from 20% to 80% takes just 2 hours.

Motor

Brand: Light Bee Off-road Electric Motorcycle
Dimension: 1850mm x 780mm x 1050mm
Ground Clearance: 270mm
Wheelbase: 1255mm
Seat Height: 830mm
Dry/Curb Weight: 45kg / 57kg
Rear Shock/Wheel Travel: Intersect TR Multi-link rear suspension with full adjustment 84/210mm
POWER SYSTEM
Motor Type: PMSM
Weight / Motor External Diameter: 7.0kg / 180mm
Motor Axial Length: 130mm
Cooling Method: Air-Cooled
Controller: FOC Sine Wave Controller
Maximum Power: 8000W
Maximum Torque: 266N.m
Top Speed: 80km/h
Riding Mode: SPORTS + ECO Mode
0-30 km/h Acceleration: 1.3s
0-50 km/h Acceleration: 2.7s
BATTERY & CHARGING
Battery Type: 60V/40Ah_21700 Lithium-Ion Removable Battery Pack
Charging Time (20 – 80%): 2h
Waterproof Rate: IP67
CHASSIS & SUSPENSION
Frame Material: Forged Aluminum Alloy
Front Fork Travel: Inverted coil spring hydraulic front fork / 200mm
Rear Suspension: Intersect TR Multi-link rear suspension with full adjustment
Max Climbing Angle: 45 degrees
Side Stand: With Kill Switch
WHEELS & BRAKES
Tyres: Front: 70/100-19, Rear: 3.00-18 Off Road
Front and Rear Brakes: 230mm Hydraulic Disc Brake
FEATURES
Throttle Curve: Two-Stage Adjustable
Regen: On SPORTS Mode
Speedometer: LCD Digital Speedometer
Headlight & Rear Light: LED
USB Connection: Single USB-2.1 A Socket
Range: 75km (@40km/h)
LIGHT BEE L1E – ADDITIONAL SPECS
License Plate Holder: Yes
Turn Signals: Yes
Tail Light: Yes
Rear Mirrors: Yes
Reflectors: Yes

Transmission

Gear Ratio: 1:7.6
Transmission: Primary Belt & 420 Drive Chain
ELECTRICAL COMPONENTS
Battery: 60V 40Ah Lithium-Ion Removable Battery Pack (21700 Panasonic Cells)
Battery Life: 500 Cycles (reduces thereafter)
Battery Charge Indicator: Integrated LCD Display
Charger: 10A
Charging Time (20-80%): 2 Hours
USB Connection: Single USB-2.1 A Socket
Speedometer: LCD Digital Speedometer
Headlight & Rear Light: LED
Waterproof Rating: IP67
Regen Braking: Enabled (SPORTS Mode)

Vehicle

Chassis & Swingarm: Forged Aluminum Alloy
Chassis Surface & Colour Processing: Anodic Oxidation
Front Suspension: Inverted Coil Spring Hydraulic Front Fork, 200mm Travel
Rear Shock Absorber: Intersect TR Multi-Link Rear Suspension, Fully Adjustable, 210mm Travel
Wheel Type & Size: Front: 19 x 1.4 Wire-Spoke Wheel, Alloy Hub
Rear: 18-inch Off-Road Wire-Spoke Wheel, Alloy Hub
Tire Size: Front: 70/100-19
Rear: 3.00-18 Off-Road
Max Range: 75km @ 40km/h depending on terrain
Net Weight: 45kg (Dry) / 57kg (Curb)
Max Load: 100kg (220 lbs.)
Max Climbing Angle: 45 degrees
Rear Sprocket: 48T
Side Stand: With Kill Switch
Vehicle Dimensions: 1,850mm x 780mm x 1,050mm
Minimum Ground Clearance: 270mm
Wheelbase: 1,255mm
Seat Height: 830mm
